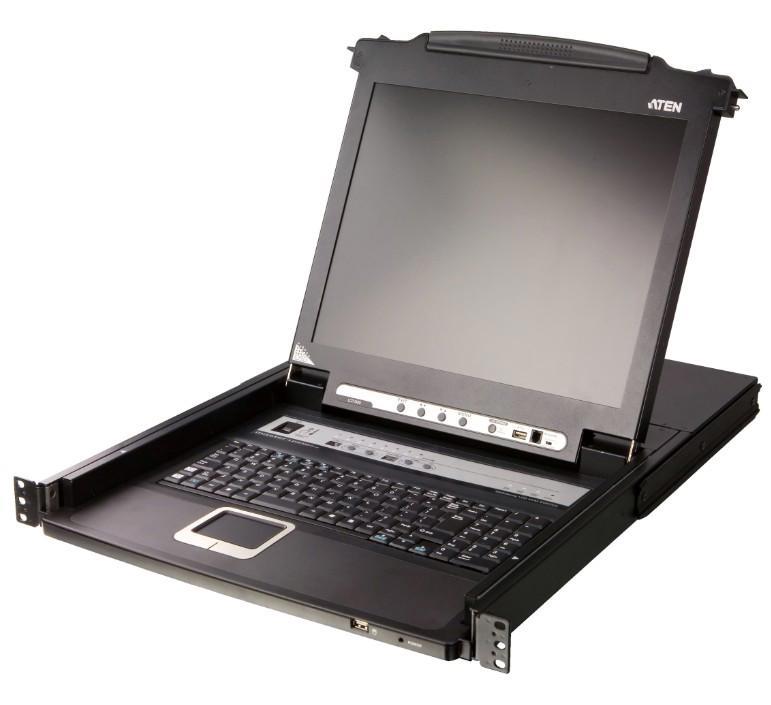

The CL5708 Slideaway – LCD KVM Switch series is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 or 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.
The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17', 17.3' or 19' LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. The 17.3' LCD monitor offers Full HD superior video quality for enhanced visibility and clarity.
The CL5708 is built on a modular design. The KVM section can be detached from the switch section for convenient maintenance and repair.
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.
CL5708M: 17' LCD
CL5708MW: 17.3' FHD LCD
CL5708N: 19' LCD
CL5708FM: 17' LCD with fingerprint reader (Discontinued)
Package Contents
1x CL5708 LCD KVM Switch with standard Rack Mount Kit
2x Custom KVM Cable (VGA, USB; 1.8 m/6 ft)
1x Custom Console Cable (VGA, USB, PS/2; 27 cm/0.88 ft)
1x Firmware Upgrade Cable(1.8 m/6 ft)
1x Power Cord (AC Power Models)
1x User Instructions
