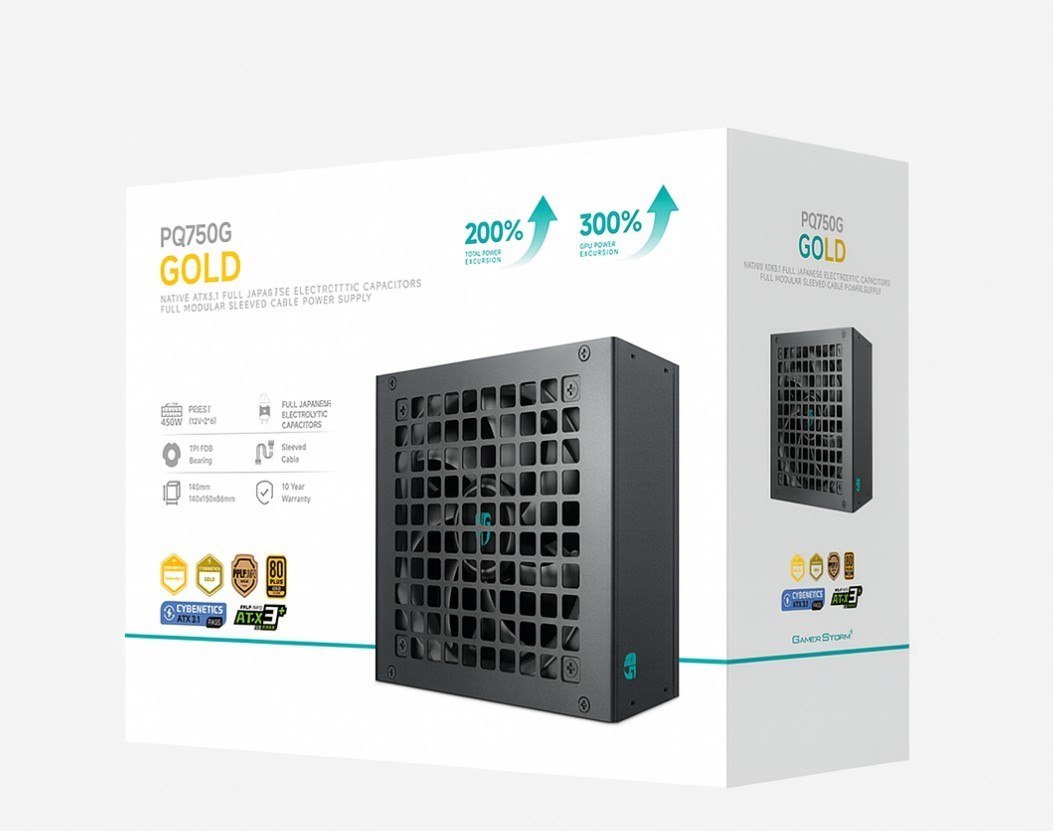

DeepCool PQ750G
ENGINEERED
FOR MODERN COMPONENTSWith the ability to provide twice the total system power, 2.5 times the 12V CEM peak power, and three times the rated power of the 12V-2x6 cable for 0.1 ms, random power spikes will never be an issue. The PQ750G will provide stable and consistent power for legacy and modern power-hungry PCs for the foreseeable future.
Total Output 750W
Type ATX12V V3.1
Product Dimensions 150×140×86mm (W x L x H)
Efficiency certification 80Plus Gold/Cybenetics Gold/PPLP Gold
Fan Size 120×120×25mm (W x L x H)
Fan Bearing FDB (Fluid Dynamic Bearing)
Topology Active PFC + Half Bridge SRC LLC + DC to DC
Capacitors Full Japanese Electrolytic Capacitors
Power Good Signal 100-150ms
Hold Up Time ≥16ms Full load
Efficiency ≥90% Under Typical Load(50% Loading)
Protection OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Operation Temperature 0-40°C
Regulatory EAC
Erp Regulation ErP 2013
Environment Protection EAC
MTBF 100,000 Hours
