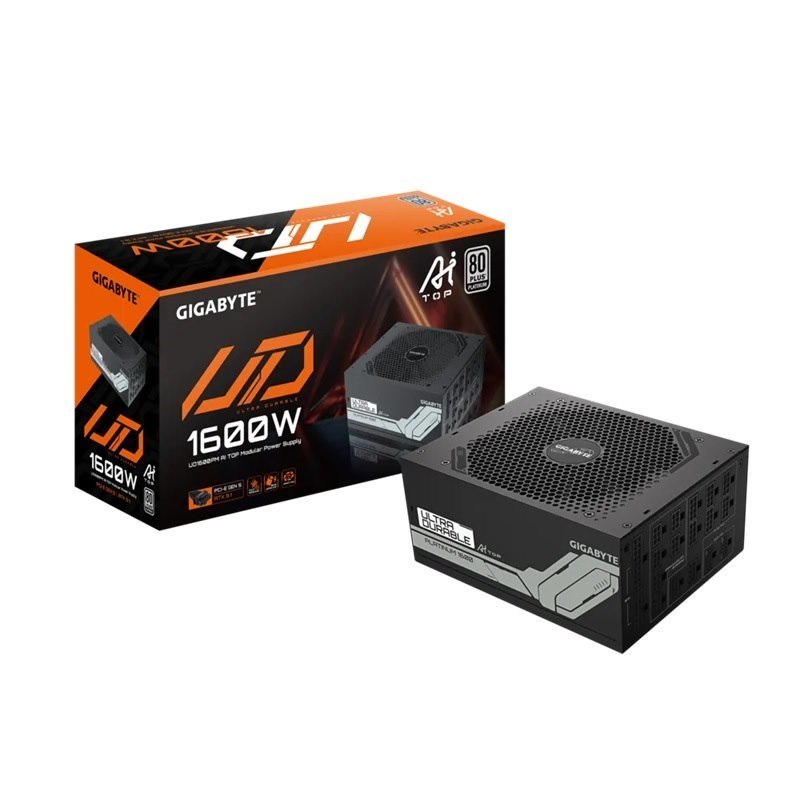

Gigabyte GP-UD1600PM PG5 AI TOP Power Supply, 1600W, ATX12V, 80 PLUS Platinum Fan, Type 140mm Double Ball Bearing fan >100,000 hours, 3 years warranty SPECIFICATION Model GP-UD1600PM PG5 Type Intel Form Factor ATX 12V v3.1 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 15-7.5A Input Frequency 60-50 Hz Output Capacity 1600W Dimension 150 x 190 x 86mm Fan Type 140mm Double Ball Bearing fan 80 PLUS Platinum Efficiency 92% at typical load MTBF >100,000 hours Protection OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >16ms Cable Type Flat, All black Connectors ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 650mm*2 PCI-E 16 Pin x 2 : 700mm*2 PCI-E 16 Pin to PCI-E 8 pin x 2 : 700mm*2 PCI-E 6+2 Pin x 8 : 650mm+150mm*4 SATA x 16 : 650mm+150mm+150mm+150mm*4 4 Pin Peripheral x 6 + 4 Pin floppy x 2 : 600mm+150mm+150mm+150mm*2
